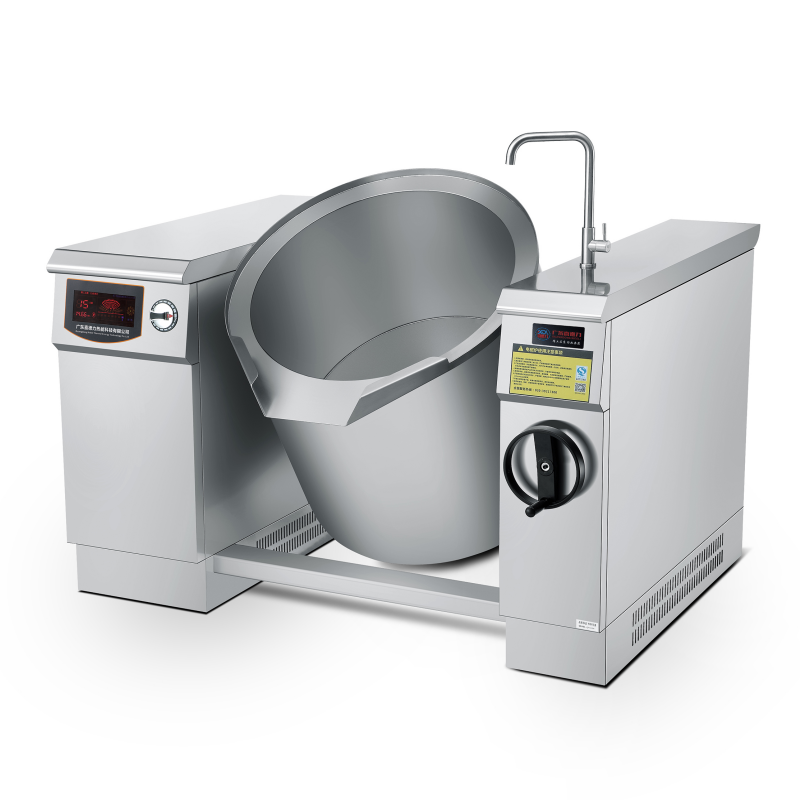

Electromagnetic large boiling oven

Material standard: table 1.2, other 1.0

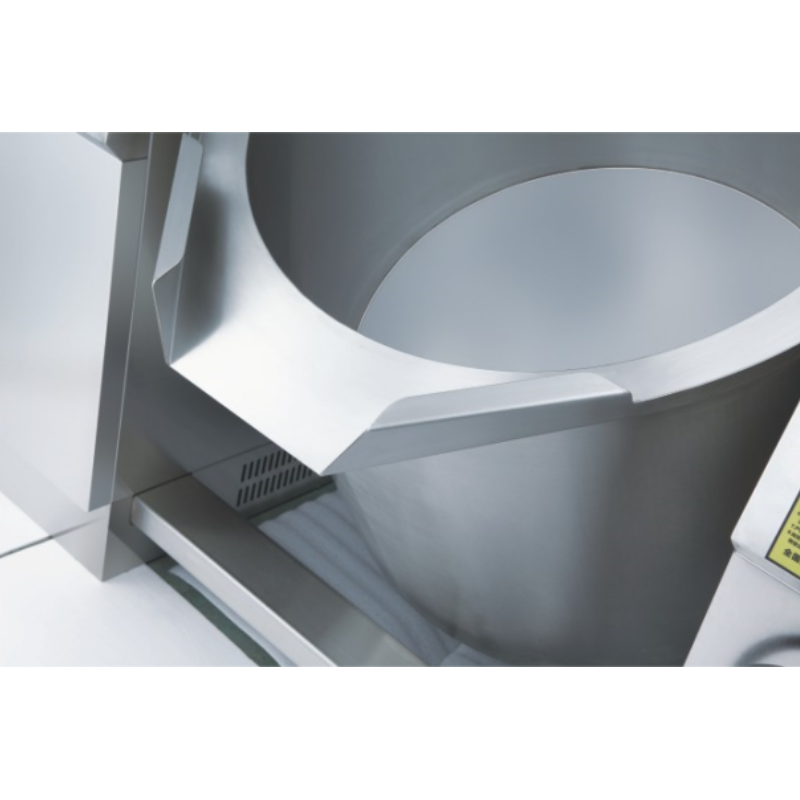

the bottom of the pot composite bottom material, thickness of 7mm, the whole plate is heated, boiling soup porridge is not paste pot

The pot lid adopts 2-lobe foldable design, which is easy to use

Material standard: table 1.2, other 1.0
The pot body is food grade 304#, and the bottom of the pot is a 7mm thick composite plate
special large wire reel, full plate heat, non-paste bottom, non-stick pan, long service life, with pot lid

Consult

Features
Technical Indicators

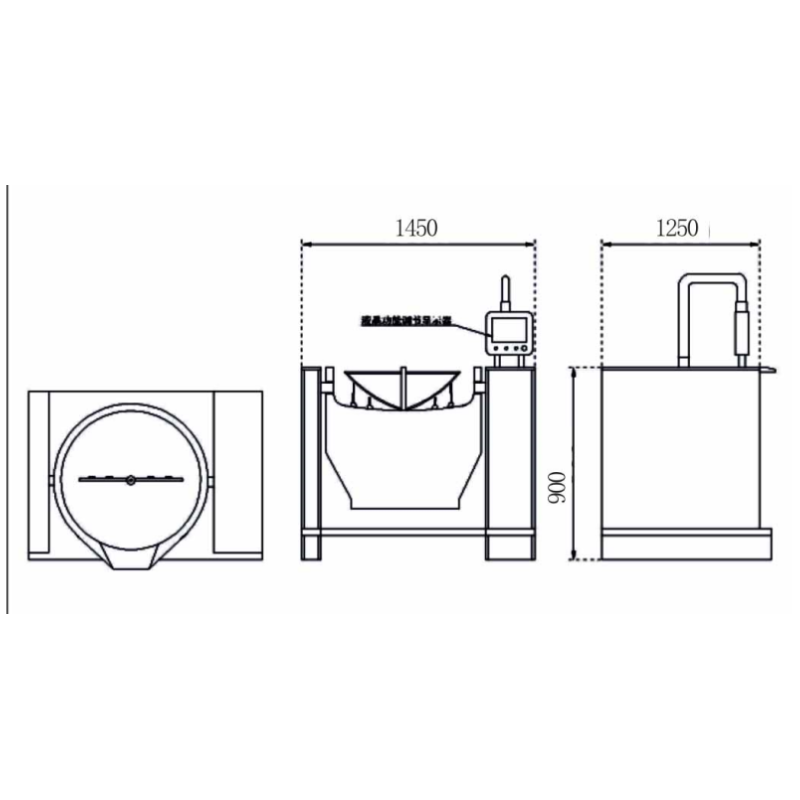

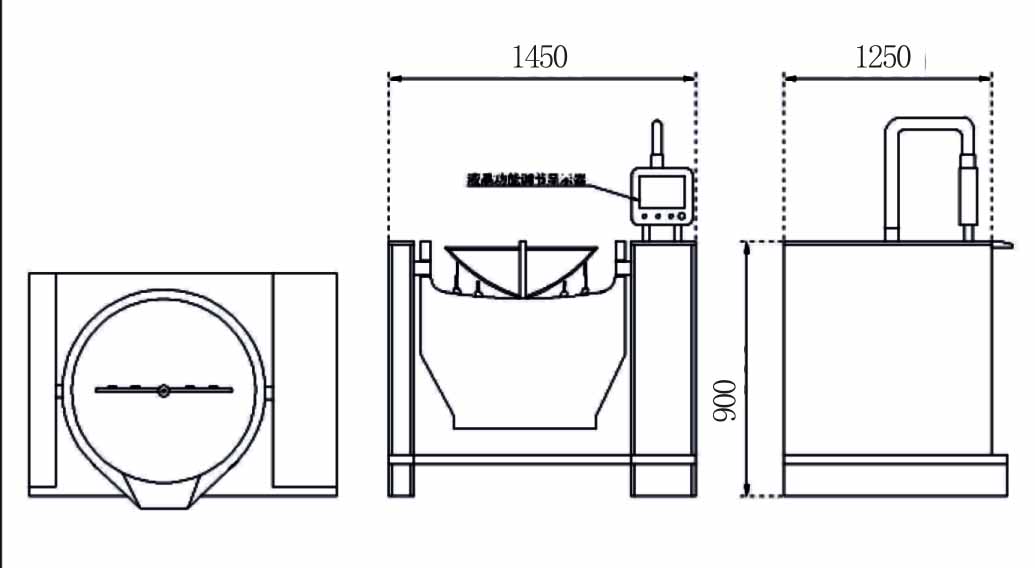

Overall Dimension


Specification/Model
Power
Gross weight: kg
Net weight: kg
Packing size
(length, width and height: cm)
GDXDL-Y700
900*1000*800+400
380V/15KW
110
70
94*112*135
GDXDL-Y800
1000*1100*800+400
380V/20KW
120
80
104*122*135
GDXDL-Y900
1100*1200*800+400
380V/25KW
130
90
114*132*135
GDXDL-Y1000
1200*1300*800+400
380V/30KW
140
100
124*142*135
GDXDL-YB700
1450*1220*1000
380V/15KW
150
100
155*132*130
GDXDL-YB800
1550*1220*1000
380V/20KW
170
120
165*132*130
GDXDL-YB900
1650*1220*1000
380V/25KW
190
140
175*132*130

Specification/Model	Power	Gross weight: kg	Net weight: kg	Packing size (length, width and height: cm)
GDXDL-Y700 9001000800+400	380V/15KW	110	70	94112135
GDXDL-Y800 10001100800+400	380V/20KW	120	80	104122135
GDXDL-Y900 11001200800+400	380V/25KW	130	90	114132135
GDXDL-Y1000 12001300800+400	380V/30KW	140	100	124142135
GDXDL-YB700 145012201000	380V/15KW	150	100	155132130
GDXDL-YB800 155012201000	380V/20KW	170	120	165132130
GDXDL-YB900 165012201000	380V/25KW	190	140	175132130
