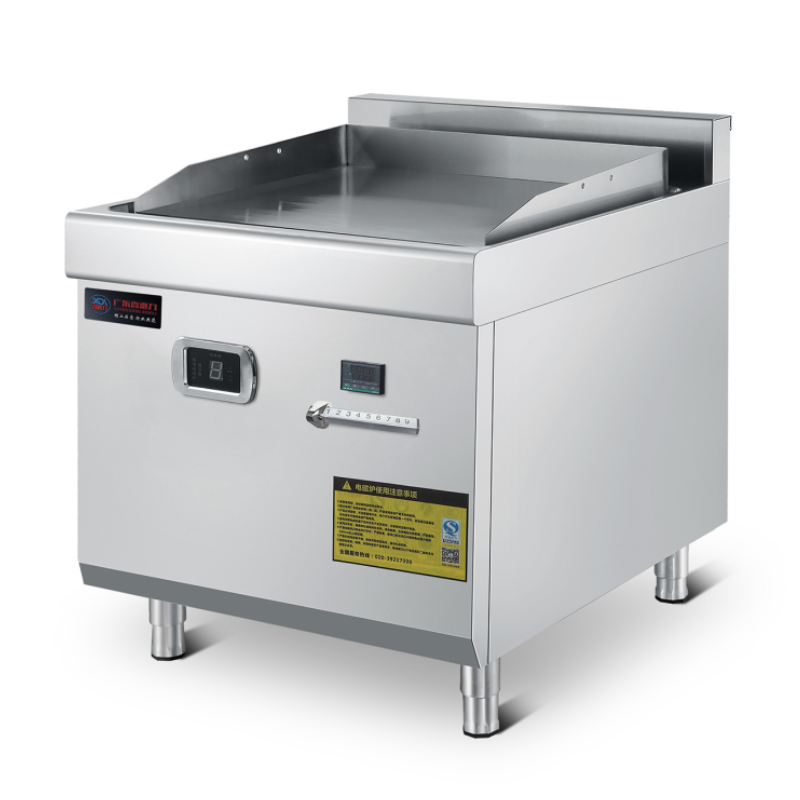

Electric grill

Braised furnace

1. Material standard: table top 1.2, others 1.0

2. The thickness of the grilling plate is 20mm, the whole plate is heated, the firepower is uniform, and the temperature rise is fast
3. Manual and automatic fire control, which can reach 200 degrees in three minutes, and OMRON temperature control can set the temperature

4. Special heating coil, full heating

Electric grill

1. Material standard: table top 1.2, others 1.0
2. The thickness of the grilling plate is 20mm, the whole plate is heated, the firepower is uniform, and the temperature rise is fast
3. Manual and automatic fire control, which can reach 200 degrees in three minutes, and OMRON temperature control can set the temperature

Consult

Features
Technical Indicators

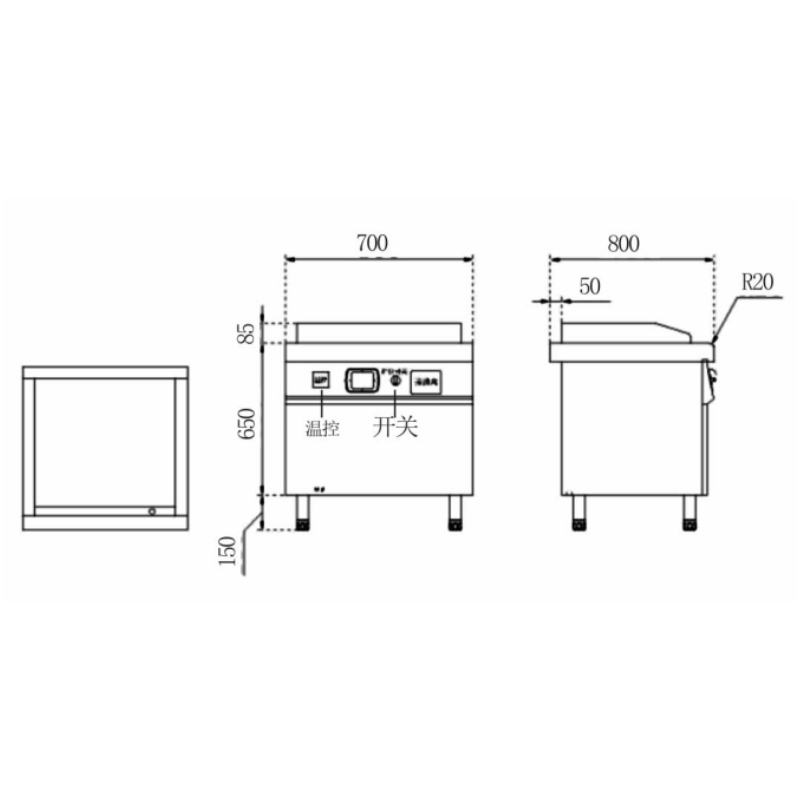

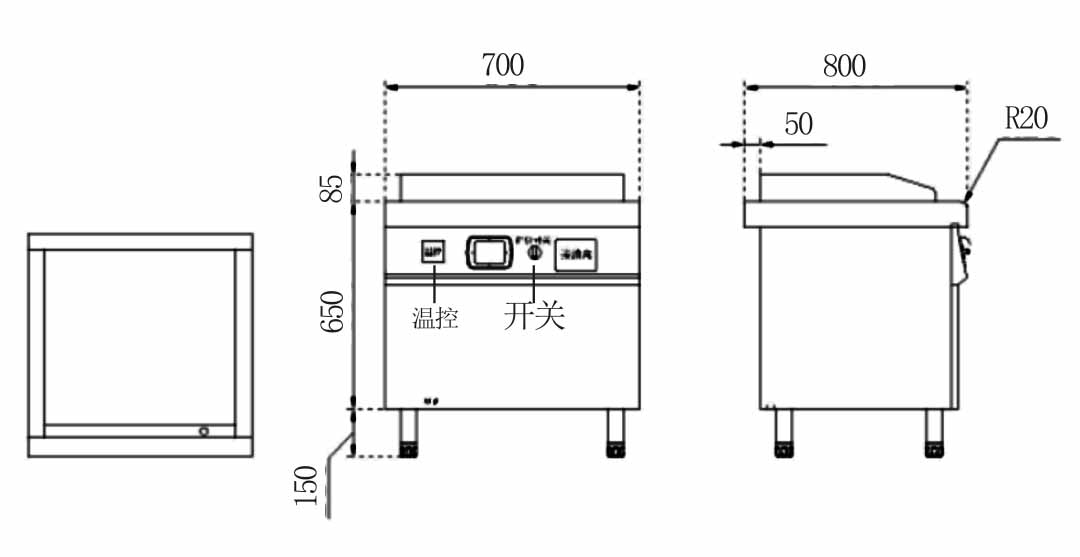

Overall Dimension


Specification/Model
Power
Gross weight: kg
Net weight: kg
Packing size
(length, width and height: cm)
GDXDL-PL-8
800*800*800+150
380V/8KW
80
60
84*87*105
GDXDL-PL-10
1000*800*800+150
380V/10KW
100
80
104*87*105
GDXDL-PL-12
1200*800*800+150
380V/12KW
120
100
124*87*105
GDXDL-DRPL-8
800*800*800+150
380V/9KW
80
60
84*87*105
GDXDL-DRPL-10
1000*800*800+150
380V/12KW
100
80
104*87*105
GDXDL-DRPL-12
1200*800*800+150
380V/12KW
115
95
124*87*105

Specification/Model	Power	Gross weight: kg	Net weight: kg	Packing size (length, width and height: cm)
GDXDL-PL-8 800800800+150	380V/8KW	80	60	8487105
GDXDL-PL-10 1000800800+150	380V/10KW	100	80	10487105
GDXDL-PL-12 1200800800+150	380V/12KW	120	100	12487105
GDXDL-DRPL-8 800800800+150	380V/9KW	80	60	8487105
GDXDL-DRPL-10 1000800800+150	380V/12KW	100	80	10487105
GDXDL-DRPL-12 1200800800+150	380V/12KW	115	95	12487105
